Vibro Table Setup for Paver Blocks

Description

The Vibro Table Setup for Paver Blocks is another key offering from Possible Machineries. Paver blocks are an essential part of modern landscaping and urban development, and the Vibro Table ensures that these blocks are produced with consistent quality and strength.
The Vibro Table is equipped with vibration technology that ensures even distribution and compaction of concrete during the manufacturing process. This process results in high-quality, durable, and aesthetically pleasing paver blocks suitable for use in roads, pathways, parking lots, and more. The Vibro Table Setup helps increase production efficiency and ensures that each paver block meets the required standards of durability and finish.

Vibro Table Setup for Paver Blocks: Enhancing Precision and Efficiency in Concrete Block Production

Overview

The Vibro Table Setup for Paver Blocks is an essential piece of equipment used in the production of high-quality concrete paver blocks. Designed to provide consistent and reliable results, the Vibro Table is used for compacting concrete mixtures into molds, ensuring uniformity, high strength, and excellent finish of paver blocks. This setup incorporates advanced vibration technology, which helps in achieving dense and durable pavers, ideal for both commercial and residential projects.

In the modern manufacturing environment, the Vibro Table plays a crucial role in enhancing production efficiency and delivering top-tier products. This article explores the features, benefits, and machinery involved in the Vibro Table Setup for Paver Blocks.

Key Features of the Vibro Table Setup

• Vibration Technology: Ensures thorough compaction and uniform distribution of materials within molds.

• High-Quality Output: Produces paver blocks with superior finish, strength, and durability.

• Customization: Compatible with different mold sizes and shapes, allowing for various types of pavers (interlocking, solid, or decorative).

• Efficiency: Significantly reduces production time by streamlining the molding and compacting process.

• Low Maintenance: Designed for continuous operation with minimal upkeep, ensuring a long service life.

• Flexibility: Ideal for manufacturers of both standard and decorative paver blocks.

Machinery Involved in the Vibro Table Setup for Paver Blocks

The Vibro Table setup is typically integrated with various machines to ensure smooth operation and optimal results. Here’s a breakdown of the machinery involved in the setup:

1. Vibro Table (Vibrating Platform)

• Core Function: The heart of the setup, the Vibro Table uses high-frequency vibration to compact the concrete mix inside molds. This ensures the elimination of air pockets, improves uniformity, and strengthens the paver blocks.

• Specifications:

  • Motorized vibratory motion

  • Adjustable vibration frequency and amplitude

  • Heavy-duty construction to withstand continuous use

• Benefits:

  • Increased block density

  • Superior surface finish

  • Faster cycle times

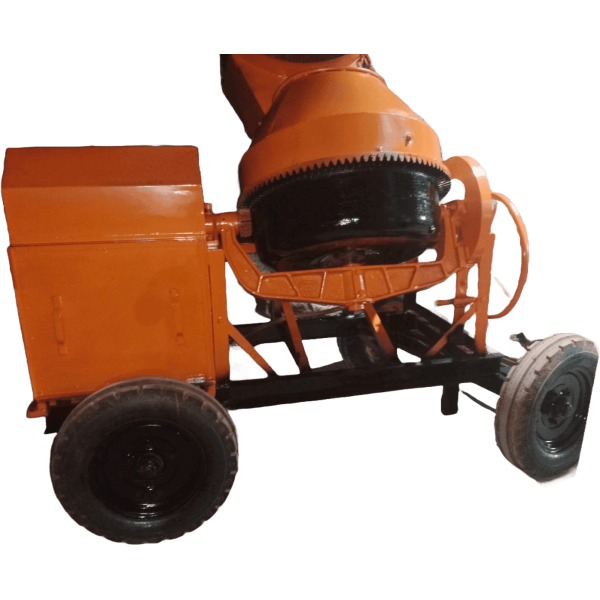

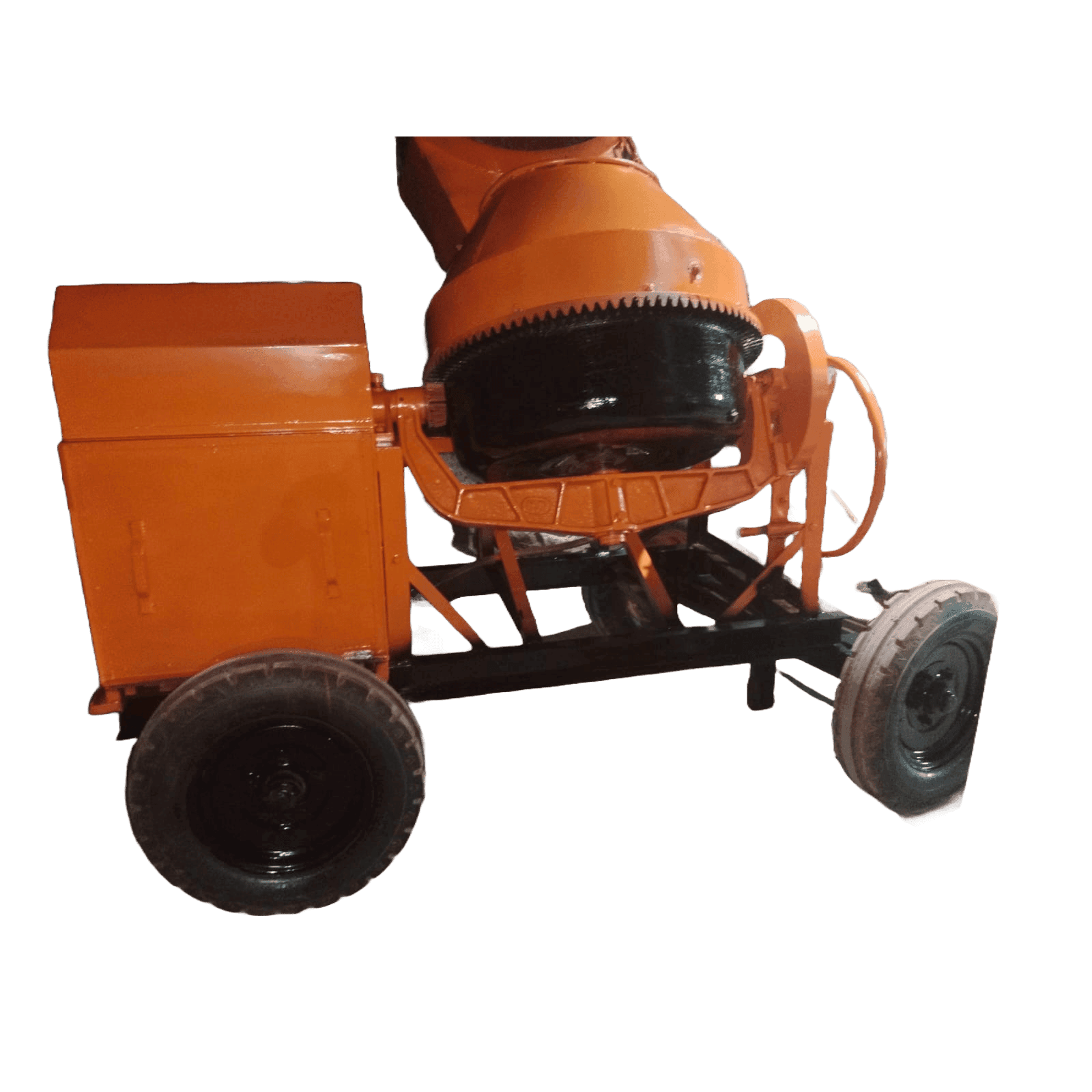

2. Concrete Mixer (Pan or Drum Type)

• Purpose: Mixes the concrete ingredients—cement, aggregates, water, and admixtures—into a homogenous mixture ready for molding.

• Capacity: Typically ranges from 250 to 1000 kg per batch.

• Features:

  • Automatic or semi-automatic water addition

  • Timed mixing cycle for consistency

• Advantage: Ensures a consistent mix for uniform paver block quality.

3. Paver Block Molding Machine

• Function: The machine shapes the mixed concrete into the desired paver block shape and size using specific molds. It often operates in conjunction with the Vibro Table for final compaction.

• Specifications:

  • Can accommodate various mold types (interlocking, square, rectangular, etc.)

  • Adjustable pressure settings for different block densities

  • Semi-automatic or automatic operation

• Benefit: High-precision production of paver blocks.

4. Hydraulic Press (Optional)

• Function: In some setups, hydraulic presses are used to provide additional compaction force to the concrete mixture after it has been poured into the mold.

• Benefits:

  • Ensures extremely dense, strong, and crack-resistant blocks

  • Offers control over the pressure applied to different mixes

5. Curing System

• Options:

  • Steam Curing Chamber: Accelerates the curing process to speed up the production cycle.

  • Water Spray Curing: Involves spraying water on blocks to ensure proper hydration and curing.

• Function: Proper curing is essential for the strength and durability of the paver blocks.

• Benefit: Enhances the lifespan and quality of pavers, ensuring they meet strength standards.

6. Conveyor Belt System

• Purpose: Automatically transports molds from the Vibro Table setup to the curing or drying area.

• Benefit: Streamlines the production flow, reducing manual labor and increasing throughput.

7. Vibrating Motors and Control Panel

• Purpose: Powers the Vibro Table’s vibration mechanism.

• Features:

  • Adjustable settings for vibration speed and frequency

  • Centralized control panel for easy monitoring and adjustments

• Benefit: Ensures optimal vibration levels for maximum compaction.

Production Workflow with Vibro Table Setup

1. Mixing: The raw materials (cement, aggregates, water) are mixed in a concrete mixer.

2. Molding: The concrete mix is poured into molds by a paver block molding machine.

3. Vibrating & Compacting: The molds are placed on the Vibro Table, where they undergo vibration to ensure uniform density and compaction.

4. Ejection: Once compacted, the paver blocks are ejected from the molds.

5. Curing: Blocks are moved to the curing area where they undergo the curing process to reach full strength.

6. Packing and Dispatch: After curing, the paver blocks are ready for packaging and shipping.

Benefits of Using Vibro Table Setup for Paver Blocks

• Consistency and Quality: The vibration ensures uniform compaction, resulting in paver blocks with a consistent size, shape, and strength.

• Higher Efficiency: Reduced cycle times due to continuous operation and automation.

• Cost-Effective: Lower labor costs due to automation and faster production cycles.

• Versatility: Can produce a wide variety of paver blocks, from interlocking to decorative styles.

• Durability: Vibro-compacted pavers have high strength, long lifespan, and are resistant to wear and tear.
